  HYDSUNRIDA LD-PV063 63cc high pressure variable axial piston pump, 350bar nominal & 420bar peak pressure, 1:1 OEM replacement, ISO9001 & SGS certified, factory direct supply with spot stock and fast delivery for medium-duty hydraulic systems.SEO Meta Long: Premium LD-PV063 63cc open circuit variable piston pump. 1:1 non-destructive replacement for imported hydraulic pumps, ISO&SGS certified, strict factory testing, cost-effective factory price, sufficient spot stock and full after-sales service for industrial machinery and hydraulic equipment.

1. Product Overview

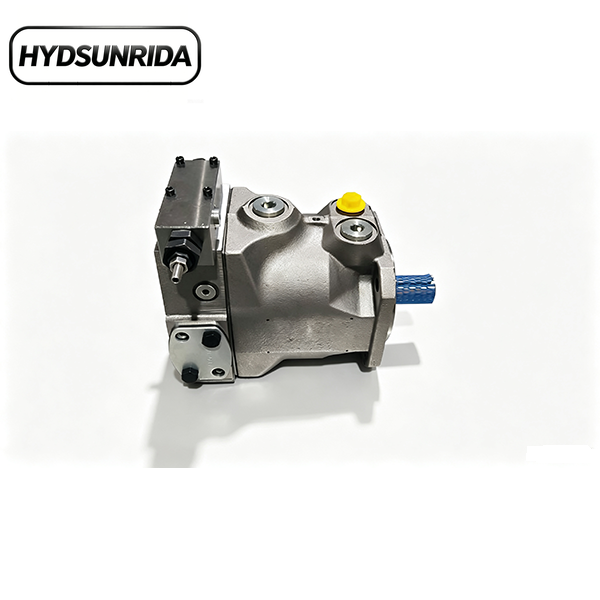

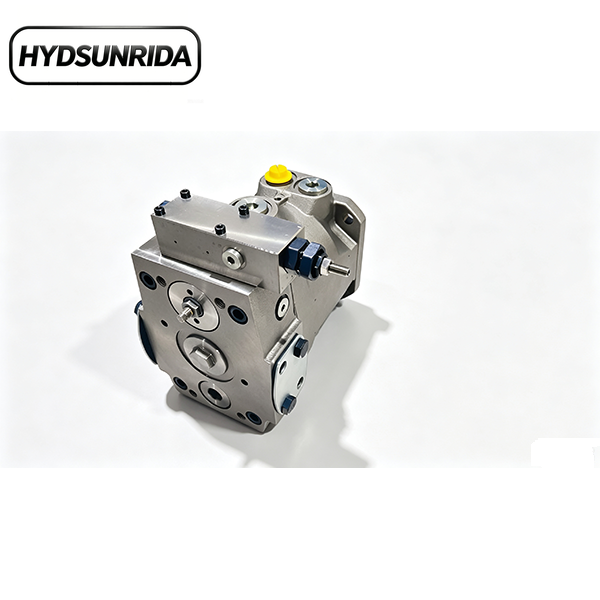

LD-PV063 is a heavy-duty open-circuit variable piston pump. With 63cc displacement and 350bar rated pressure, it supports 24/7 full-load operation for medium-duty hydraulic systems.Featuring low leakage, low noise and high efficiency, LD-PV063 achieves 1:1 non-destructive replacement of standard 63cc hydraulic pumps. No modification or debugging is required to cut operational costs.

2. Quality Certification & Testing

Certified with ISO9001 and SGS, LD-PV063 complies with industrial hydraulic standards for stable, reliable quality.Every unit undergoes strict pressure, flow, leakage and endurance tests, ensuring ultra-low failure rates under continuous working conditions.

3. Core Technical Parameters & Control Modes

3.1 Basic Specifications

• Rated Displacement: 63 ml/r (Standard medium-duty displacement)

• Nominal Pressure: 350 bar

• Peak Pressure: 420 bar

• Structure: 9-piston balanced design, rigid modular housing, high durability, easy maintenance

• Applicable Circuit: Open hydraulic circuit

• Hydraulic Oil Viscosity: 35-55 mm²/s

• Working Performance: 24h non-stop full-load continuous operation

• Warranty: 12-month complete machine warranty

3.2 Control Modes

• Pressure & Flow Control: Stepless regulation for stable operation

• Constant Power Control: Automatic load matching, energy efficient

• Manual Control: Simple, stable and practical

4. Core Advantages

4.1 1:1 Zero-Modification Replacement

Fully compatible with standard 63cc pump parameters, LD-PV063 directly replaces imported pumps, saving procurement and upgrade costs.

4.2 Factory Direct Supply

Factory direct supply with competitive prices. Sufficient spot stock ensures fast delivery for bulk and urgent orders.

4.3 Durable & Stable Performance

High-strength alloy components and precision processing deliver excellent pressure resistance and wear resistance, ensuring long-term stable operation.

4.4 Custom OEM/ODM Service

OEM/ODM customization is available for pressure and flow to fit special working conditions.

4.5 Full-Cycle After-Sales Service

Full professional support including model selection, installation guidance and reliable after-sales service.

5. Full Series Standard Models (LD Upgrade Version)

LD-PV063 is an upgraded version with higher precision, better sealing and stronger durability than ordinary standard pumps.

5.1 Pressure & Flow Control Series

LD-PV063R1K1T1NMMC, LD-PV063R1L1T1NMMC, LD-PV063R1D1T1NMMC, LD-PV063R1E1T1NMMC

5.2 Constant Power Control Series

LD-PV063R1K1T1WMMC, LD-PV063R1L1T1WMMC, LD-PV063R1D1T1WMMC

5.3 Manual Adjustment Series

LD-PV063R1K1T1NNNC, LD-PV063R1L1T1NNNC, LD-PV063R1D1T1NNNC

5.4 General Standard Series

LD-PV063R1K1T1, LD-PV063R1L1T1, LD-PV063NMMC

6. Application Fields

Suitable for machine tools, injection molding machines, hydraulic presses, mining and construction machinery. Ideal for pump replacement and domestic hydraulic system substitution.
