LD-A2FM56 Bent Axis Piston Hydraulic Motor | 56cc High Speed | 1:1 OEM Replacement Factory

Product Overview

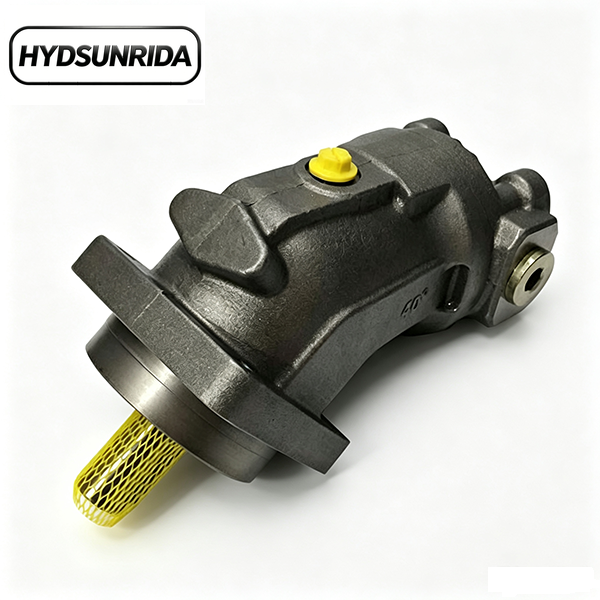

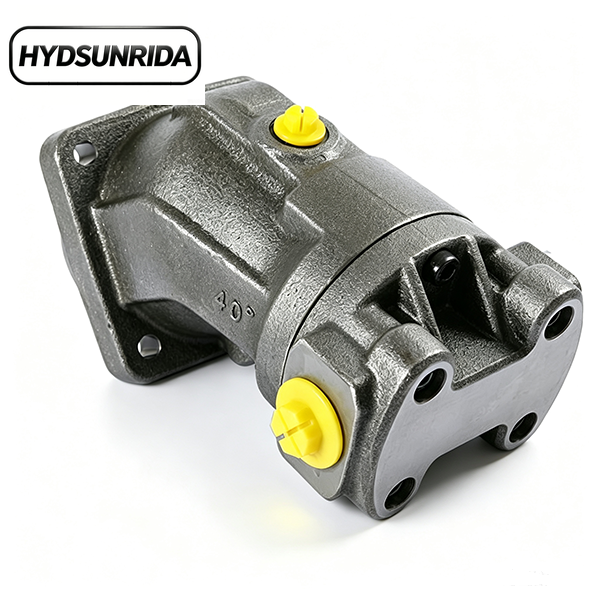

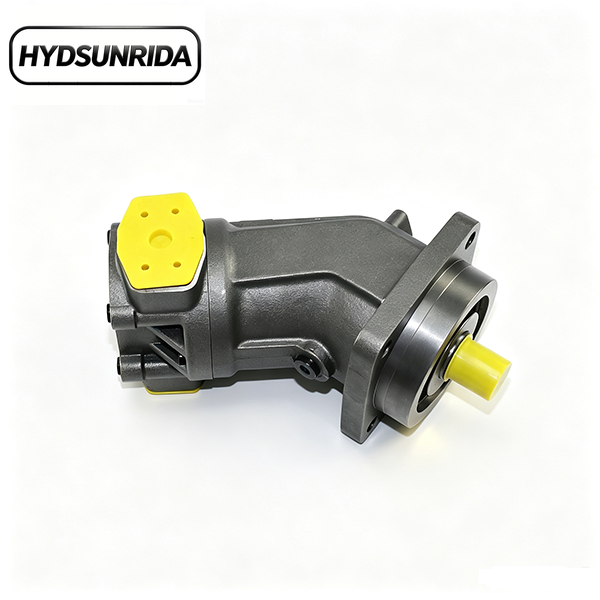

LD-A2FM56 bent axis piston hydraulic motor is a 56cc high-speed fixed-displacement hydraulic motor for medium-duty engineering machinery. Adopting a 40° bent axis structure, it delivers stable torque and high-efficiency continuous operation. This motor supports precise 1:1 OEM drop-in replacement, with fully matched mounting dimensions, oil port layout and working parameters for direct installation without equipment modification.Certified by ISO9001:2015 and SGS, the LD-A2FM56 motor is manufactured in compliance with GB/T3766-2015 hydraulic standards. Every unit passes four strict pre-delivery durability tests to ensure low internal leakage and long service life. Factory-direct spot supply provides a cost-effective domestic alternative for global construction, agricultural and mining equipment.

Technical Parameters

Compatible with both open and closed hydraulic circuits, the LD-A2FM56 bent axis piston motor supports stable forward and reverse rotation with optional brake and flush valves. It is widely used in road construction, agricultural, light mining and industrial hydraulic equipment.

Complete Model Range

Domestic Models

• LD-A2FM56/61W-VAB010

• LD-A2FM56/61W-VAB020

• LD-A2FM56/61W-VBB010

• LD-A2FM56/61W-VBB020

• LD-A2FM56/61W-VBD510

Export Models

• LD-A2FM56/61W-VSD020

• LD-A2FM56/61W-VSD537

• LD-A2FM56/61W-VZB040

Quality Control & Certification

All LD-A2FM56 hydraulic motors are certified with ISO9001:2015 quality management system and SGS full performance testing. Four strict pre-delivery tests ensure stable, low-leakage and long-lifespan performance for global medium-duty equipment applications.

• High Pressure Impact Test: Ensures structural stability under extreme working pressure

• 200-Hour Durability Test: Validates long-cycle operational reliability

• Sealing Performance Test: Eliminates hydraulic oil leakage risks

• Torque & Speed Calibration: Guarantees accurate and consistent power output

Core Advantages

1. Professional In-House Production

Core components including pistons and valve plates are self-manufactured without outsourcing. Integrated ductile iron housing delivers excellent shock resistance and heat dissipation, maintaining stable operation during long-term full-load cycles with independent brand intellectual property safety.

2. 1:1 Zero-Modification Replacement

Perfectly matches imported 56cc bent axis motors in flange size, spline shaft and oil port layout. Plug-and-play installation requires no equipment or pipeline changes, effectively reducing production and maintenance costs.

3. Dual Global Authorized Certifications

ISO9001 standardized production ensures stable batch quality. Official SGS certification supports smooth global customs clearance, meeting both domestic engineering acceptance standards and international project requirements.

4. Spot Inventory & Custom Service

Sufficient stock supports 48-hour fast global delivery. Professional OEM/ODM customization is available, including optional valve assemblies and extended output shafts, with competitive bulk pricing and long-term supply agreements.

5. Universal Global Working Adaptability

Compliant with international machinery standards, the LD-A2FM56 motor is widely exported to Europe, America, Russia, Southeast Asia and South America. It stably serves road, agricultural, mining and port medium-duty equipment with high overseas repurchase rates.

Application Scenarios

• Road Construction: Heavy rollers, medium milling machines and asphalt pavers

• Agricultural Machinery: Large harvesters, logging winches and solar pile drivers

• Mining Equipment: Underground conveyors, heavy vibratory hammers and exploration drilling rigs

• Engineering Machinery: Medium mixing equipment, truck cranes and aerial work platforms

• Industrial Hydraulics: Heavy-duty closed-loop test benches and medium material handling equipment

After-Sales Service

Warranty Policy: 12-month full-unit warranty, 18-month extended warranty for core wearing parts.Professional Technical Support: 7×24-hour online hydraulic engineer guidance for free model selection and installation matching.Service Guarantee: Free replacement parts for non-human damage within warranty period; on-site commissioning service for large batch orders.Full Export Support: Complete English specification documents and customs clearance materials with one-on-one exclusive order tracking.

Manufacturer Strength

HYDSUNRIDA is a professional source manufacturer focusing on imported hydraulic motor substitution. With an annual output of 30,000+ bent axis piston motors and 60+ overseas distributors, we integrate independent R&D, precision processing and standardized testing to provide 100% factory-direct products. Global customers are welcome for factory inspection and long-term strategic cooperation.
