Product Overview

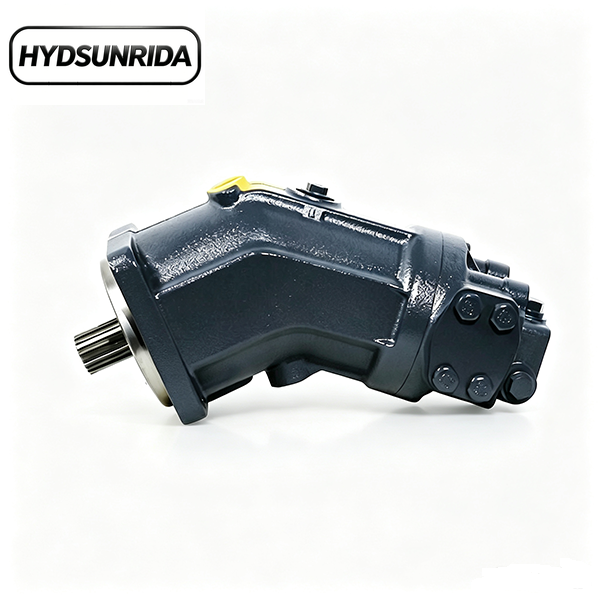

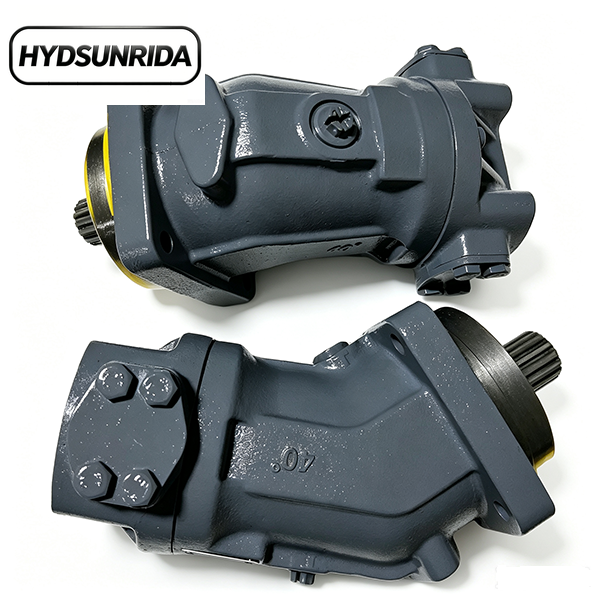

LD-A2FM90 bent axis piston hydraulic motor is a 90cc high-torque fixed-displacement motor for heavy-duty machinery. Built with a 40° bent axis structure, it delivers stable and consistent high-power output. It supports 1:1 OEM drop-in replacement for imported motors with fully matched mounting dimensions and performance, requiring no equipment modification.Certified by ISO9001:2015 and SGS, this hydraulic motor undergoes four strict factory tests to ensure low leakage and long service life. Factory direct supply with sufficient stock provides a cost-effective domestic alternative for global heavy machinery applications.

Technical Parameters

Suitable for both open and closed hydraulic circuits, the LD-A2FM90 motor supports stable forward and reverse rotation with optional brake and flush valves. It is widely used in concrete mixers, road construction, mining and agricultural heavy equipment.

Complete Model Range

Domestic Models

• LD-A2FM90/61W-VAB010

• LD-A2FM90/61W-VAB020

• LD-A2FM90/61W-VBB010

• LD-A2FM90/61W-VBB020

• LD-A2FM90/61W-VBD510

Export Models

• LD-A2FM90/61W-VSD020

• LD-A2FM90/61W-VSD537

• LD-A2FM90/61W-VZB040

Quality Control & Certification

All LD-A2FM90 hydraulic motors are certified with ISO9001:2015 and SGS. Four strict pre-delivery tests guarantee stable, low-leakage and long-lasting performance for heavy-duty industrial and construction applications.

• High Pressure Impact Test: Ensures structural stability under extreme working pressure

• 200-Hour Durability Test: Validates long-cycle operational reliability

• Sealing Performance Test: Effectively prevents hydraulic oil leakage

• Torque & Speed Calibration: Delivers accurate and consistent power output

Core Advantages

1. In-House Independent Manufacturing

Core components are self-processed with no outsourcing. Integrated ductile iron housing provides excellent shock resistance and heat dissipation, avoiding overheating and leakage under full-load operation. Independent production ensures brand safety and formal invoicing support.

2. 1:1 Plug-and-Play Replacement

Fully matches imported 90cc motors in flange size, spline shaft and oil port layout. Direct installation requires no equipment or pipeline modification, saving renovation time and procurement costs.

3. Global Standard Certification

ISO9001 standardized production ensures stable batch quality. SGS certification enables smooth global customs clearance, meeting both domestic engineering acceptance and overseas project standards.

4. Spot Stock & Custom Solution

Sufficient inventory supports 48-hour global delivery. OEM/ODM customization is available for valve assemblies and shaft specifications, with competitive bulk pricing and long-term stable supply.

5. Wide Global Application

Compliant with international machinery standards, this motor is widely exported to Europe, America, Russia, Southeast Asia and South America, serving medium and heavy concrete, road and mining equipment with stable customer repurchases.

Application Scenarios

• Concrete Machinery: 8-12m³ concrete mixer truck drive systems

• Road Construction: Heavy-duty road rollers, large milling machines and asphalt pavers

• Agricultural Machinery: High-horsepower harvesters, heavy logging winches and solar pile drivers

• Mining Equipment: Underground heavy conveyors, vibratory hammers and drilling rig travel mechanisms

• Industrial Hydraulics: Heavy-duty closed-loop test benches and large material handling equipment

After-Sales Service

Warranty: 12-month full-unit warranty, 18-month extended warranty for core wearing parts.Technical Support: 7×24-hour online hydraulic engineer guidance for model selection and installation.Service Guarantee: Free replacement parts for non-human damage within warranty; on-site commissioning for large orders.Export Service: Complete English manuals and customs documents with one-on-one order tracking.

Manufacturer Strength

HYDSUNRIDA is a professional manufacturer dedicated to imported hydraulic motor substitution. With an annual output of 30,000+ bent axis motors and 60+ overseas distributors, we integrate independent R&D, precision production and standardized testing to provide factory-direct products. Global customers are welcome for factory inspection and long-term cooperation.
